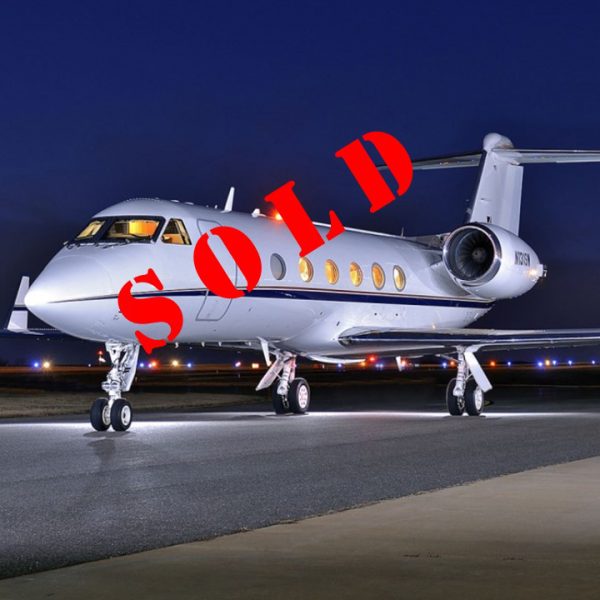

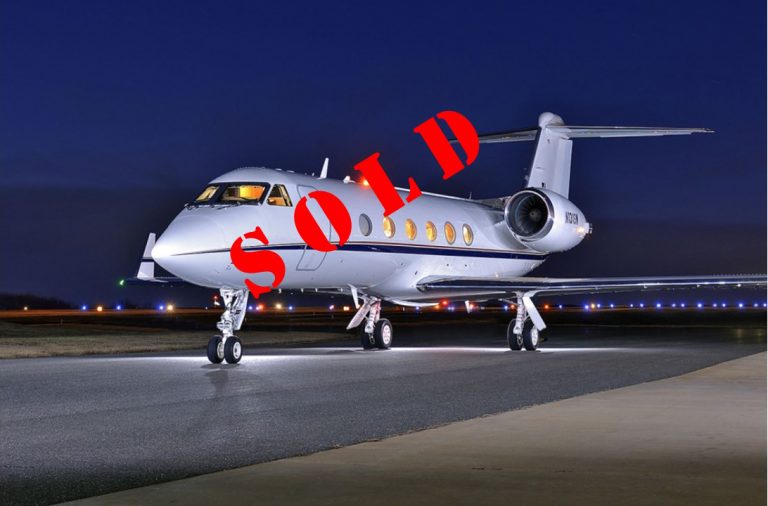

1996 Gulfstream GIV-SP

CONTACT: JON TAYLOR, 713-898-1617,; JERRY SMITH, 713-832-3479,; TOBY SMITH, 918-834-9100,


Download Presentation pdf





  • Audio International Spectra 35 Full Digital CMS (cabin management system)
  • Heads Up Technologies XM Weather
  • Primus WX 880
  • RVSM
  • Windshear Detection Equipment Forward Crew Lavatory
  • Collins Tailwind 500 TV
  • Honeywell SDU SD-700
  • EMS CNX200 Ethernet
  • Aircell Axxess Iridium phone
  • TAWS
  • Satcom
  • Honeywell AFIS
  • Airshow 4000
  • Pulselite System
  • Dual coffee maker
  • Dual temp oven
  • Hot cup
  • Microwave
  • CD/DVD player
  • LED lighting
  • 20” forward and aft LCD monitors Rosen outlets at each seating location
  • 110Vac outlets in the cabin, galley, and    lavatories
  • LCD controls



AIRFRAME: (Times as of May 6, 2016)

Air Frame Total Time: 7688.1       Landings: 2927

ENGINES: Enrolled on Rolls Royce Corporate Care

The 8000 hour / 20 year overhaul was just accomplished in August 2015 by Rolls Royce Canada at 7578.7 hours and 2896 cycles. Time since overhaul is 7 hours.


  • Left Engine Total Time: 7585.7
  • Left Engine Total Cycles: 2901
  • Rolls Royce Tay 611-8   S/N 16701



  • Right Engine Total Time: 7585.7
  • Right Engine Total Cycles: 2901
  • Rolls Royce Tay 611-8   S/N 16702


APU: Enrolled on Honeywell MSP

  • Note this APU was upgraded to the -150 at 4379 hours with all new time controlled parts.
  • Total time is 4910 hours. Time since upgrade is 520 hours.

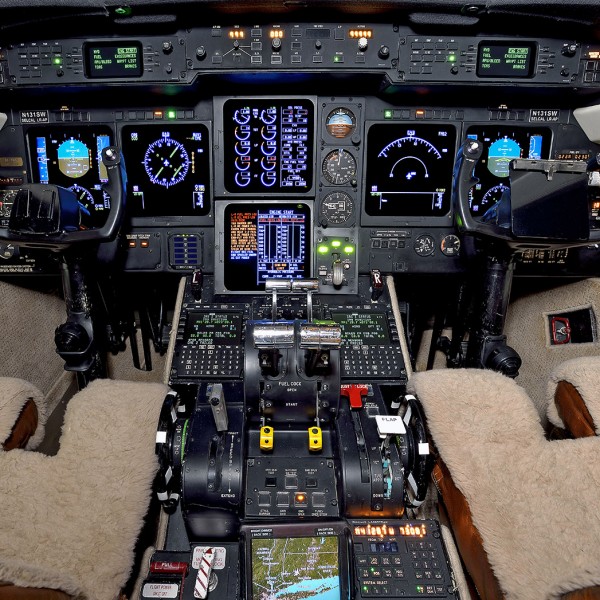

Dual Collins ADF-462
Dual Collins VHF-422D w/8.33 spacing Dual Collins DME-442D
Dual Collins HF-9032 W/Coltech SELCAL Dual Collins VIR-432 w/FM Immunity Dual Collins TDR-94D mode S w/Enhanced Surveillance, ADS-B Out
L3 Communications A-100 CVR
L3 Communications F8000 SSFDR
Dual Honeywell SPZ-8400 IFCS
Dual Honeywell FMZ-2000
Dual Honeywell Laseref II

Honeywell AHRS
Dual Honeywell AA-300 Radio Altimeter Dual ADZ AZ-810
Dual FGC FZ-820
Dual Aeronautics DDRMI
Honeywell Satcom MCS-4000
Honeywell TCAS-II (7.1)
Honeywell Mark V EGPWS w/windshear RAAS
Honeywell Broadband High Speed Data HD-710 Dual Honeywell CD-820 MFD
ICS-200 Iridium Transceiver
Artex 406 ELT

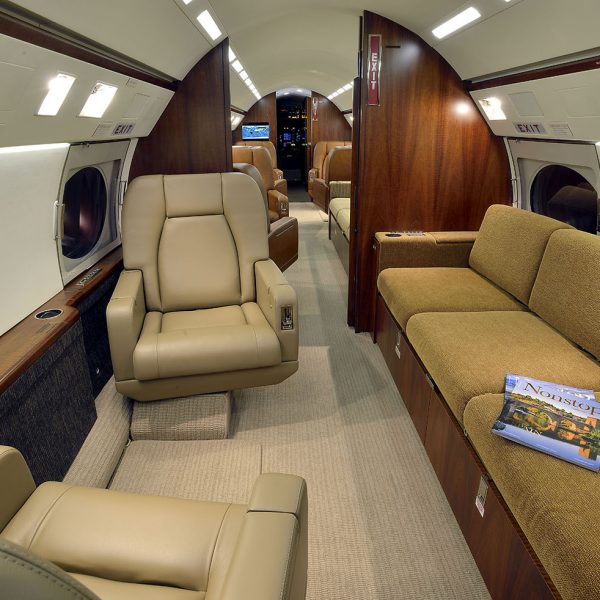

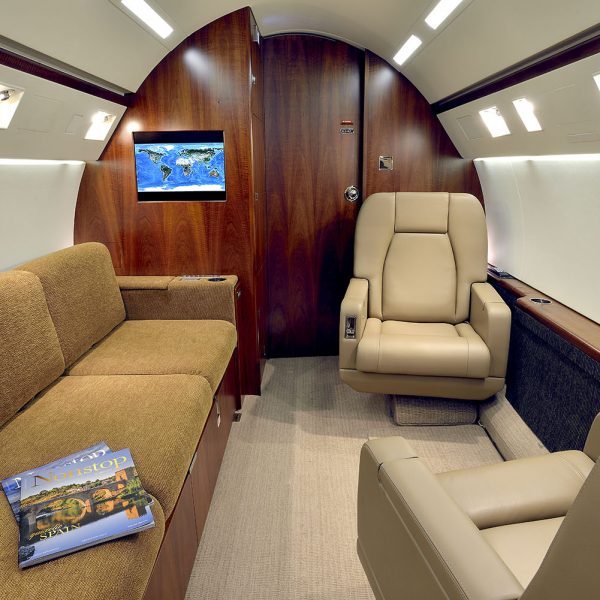

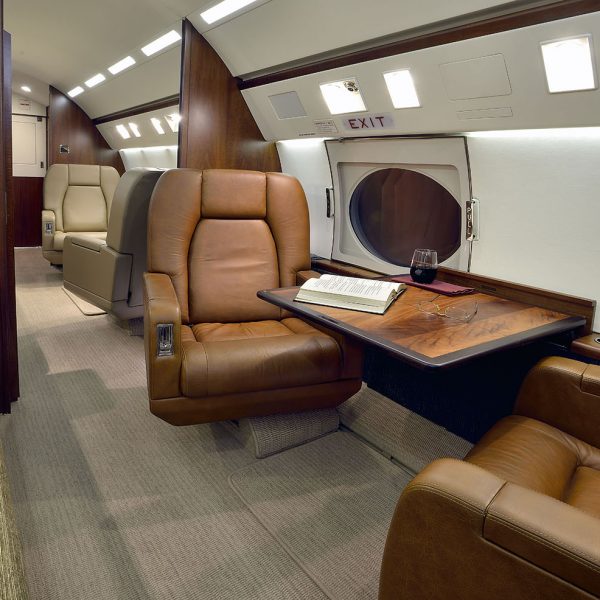

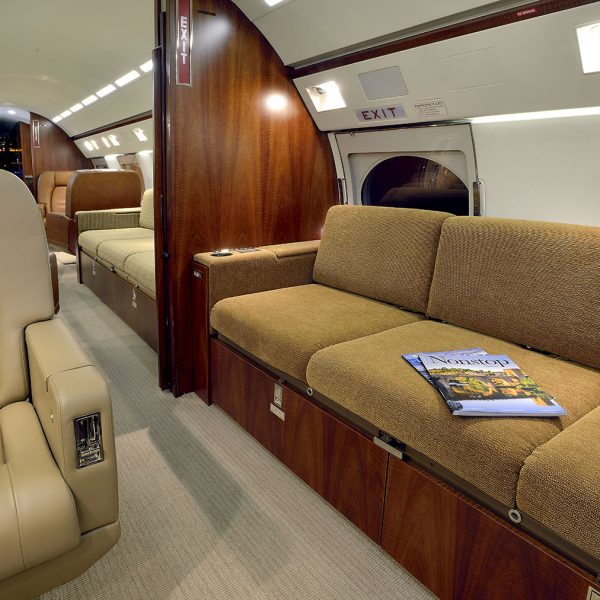

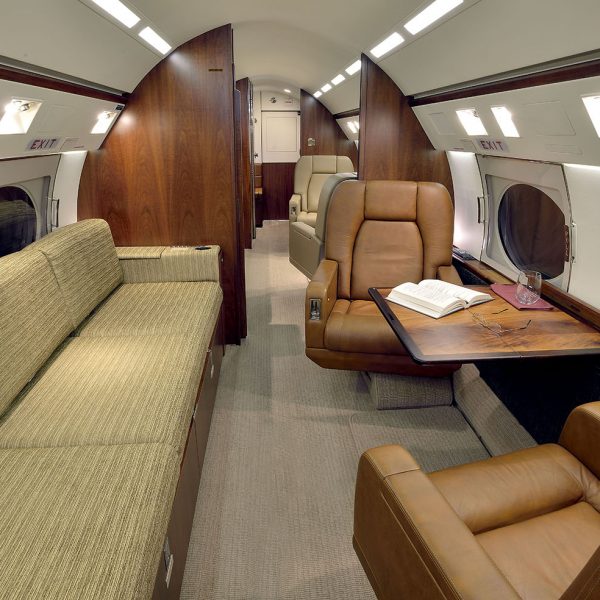

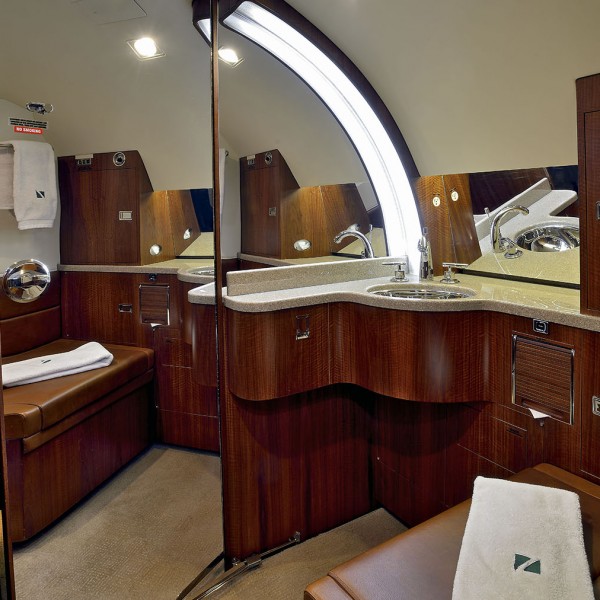

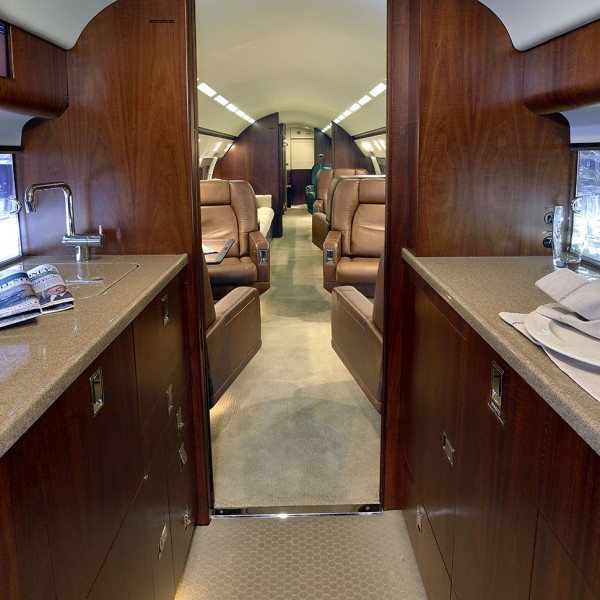

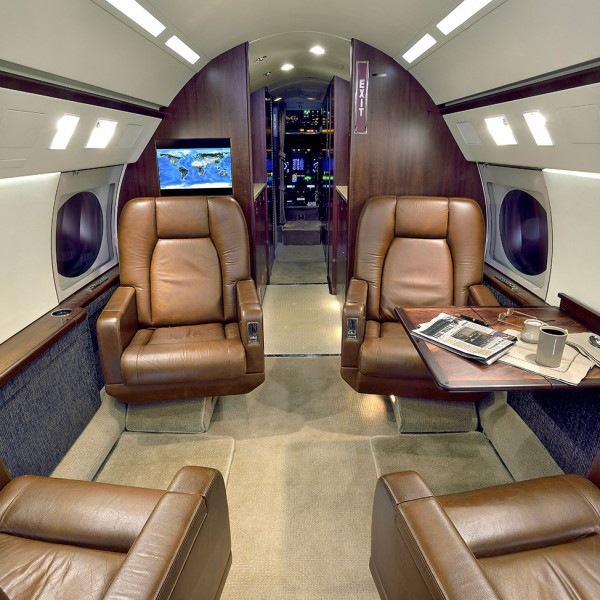

This is a 15 passenger interior with forward and aft lavatories and a forward galley. Aft of the forward galley is a 4 place club seating arrangement with pull out tables. Immediately aft of the 4 place club on the left hand side of the cabin is a 2 place club seating area and directly across from these seats is a 4 place divan. There is a mid-cabin bulkhead with a pocket door that separates the forward cabin seating area from the aft cabin seating area. The aft seating area consists of 2 place club seating on the left hand side and a 3 place divan immediately across on the right hand side. The aft seating area is followed by the aft lavatory and baggage compartment. The cabin headliner is light colored Ultra Leather. The window surrounds are covered with the same Ultra Leather as the headliner. The wood veneer is dark fine grained with a satin finish. The plating is polished chrome. The Galley floor is Bolon Spectra. Countertops are beige Corian. The interior is fire blocked IAW FAA FAR 25.853 (c). This interior was completely refurbished in May of 2009 by Midcoast Aviation. In May 2016 new carpet was installed and the couches were recovered along with other minor items which were completed at Duncan Aviation.

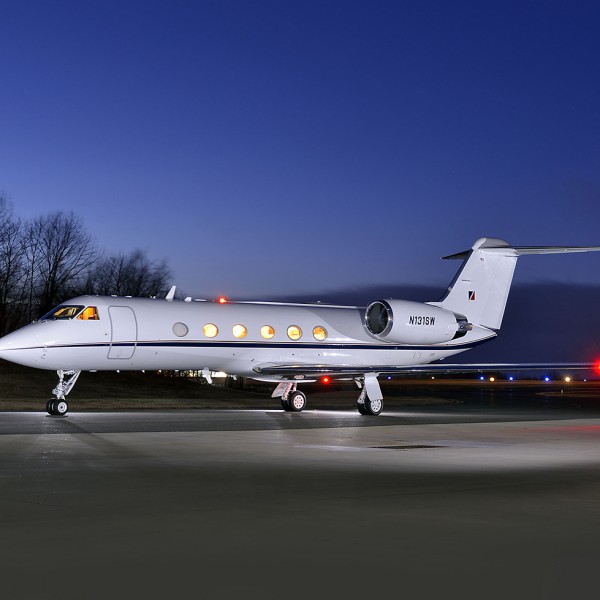

Exterior re-painted May 2009 by Midcoast Aviation.
The colors are Matterhorn White for the base with Aristo Blue and Coral Red stripes.

  • 12 month inspection was done March 2016
  • 24 month inspection due May 2017
  • 36 month inspection was done March 2016
  • 48 month inspection is due May 2017
  • 72 month inspection is due May 2019
