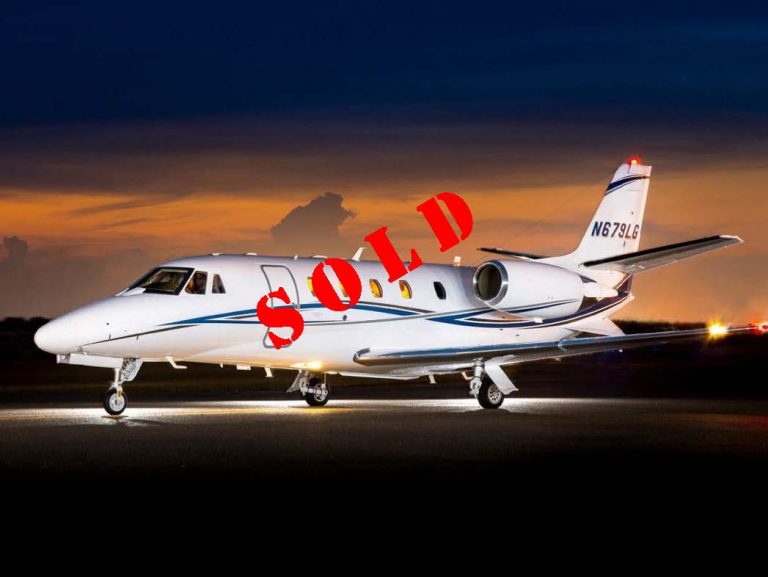

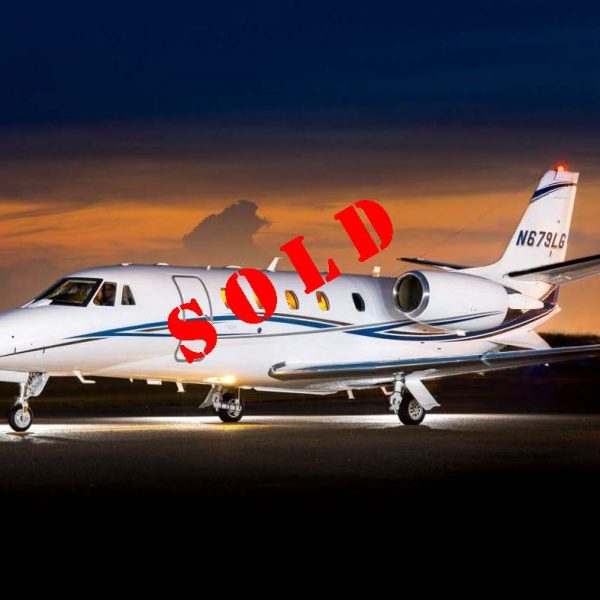

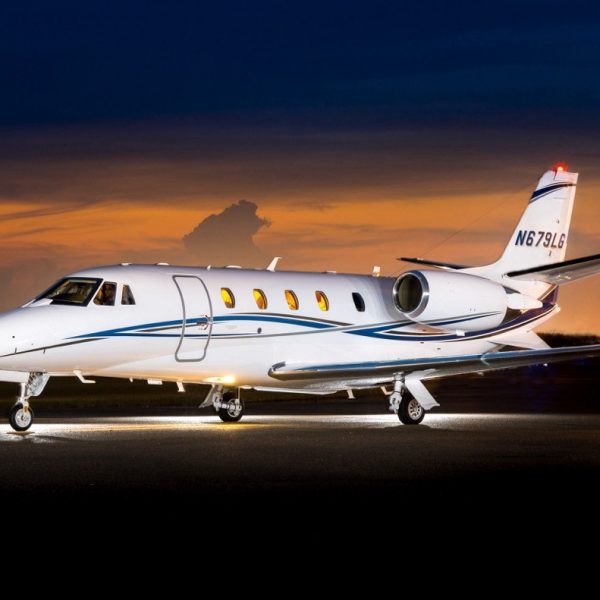

2015 Citation XLS+

Serial Number: 6195  Registration Number: N679LG

Download Specifications

Jon Taylor
(713) 898-1617

Download Vcard

AIRFRAME & ENGINES – As of 02/28/17 Airframe Total Time: 371.9                                          Landings: 242

                                                                      Engine 1                              Engine 2                              APU

Engine Model                                              PW545C                              PW545C                              Honeywell RE-100XL

Engine Serial Number                                 PCE-DF 0397                       PCE-DF 0396                       P-994

Time Since New                                           371.9 Hrs.                           371.9 Hrs.                           256.3

Cycles Since New                                         242                                      242

Maintenance Plan                                       Textron Aviation Inc. – Power Advantage Plus

AHRS: Dual Collins AHC-3000
Avionics Package: Collins Pro Line 21PFD: Dual 8×10
MFD: Dual 8×10
Communication Radios: Dual Collins VHF-4000
CVR: L3 FA2100 120-minute
DME: Dual Collins DME-4000
EFIS: Collins ADF-3310
FDR: ICAO Type 1
Flight Phone: Yes w/two handsets
FMS: Dual Collins FMC-3000
GPS: Collins GPS-4000S
Navigation Radios: Dual Collins NAV-4500
Radar Altimeter: Collins ALT-4000
TAWS: Honeywell Mark V EGPWS
TCAS: Collins TCAS-4000 TCAS-II w/change 7.1
Transponder: Dual Collins TDR-94D Mode S
Mode S Code (base 8/oct) 52177050
Mode S Code (base 16/hex) A8FE28
Weather Radar: Collins TWR-850 w/turbulence

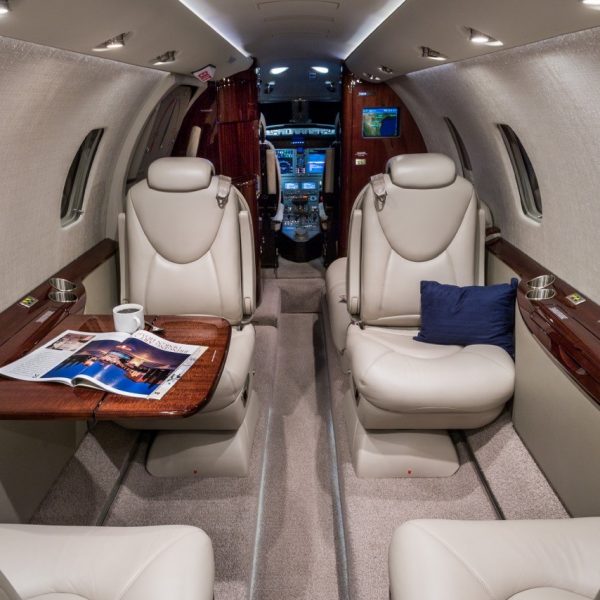

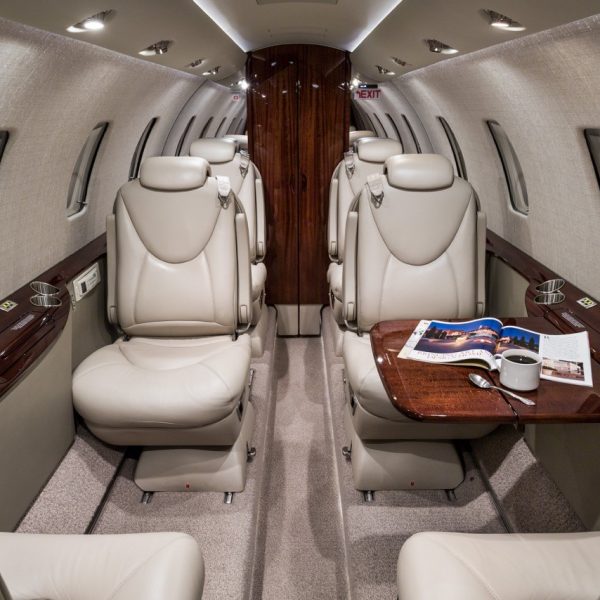

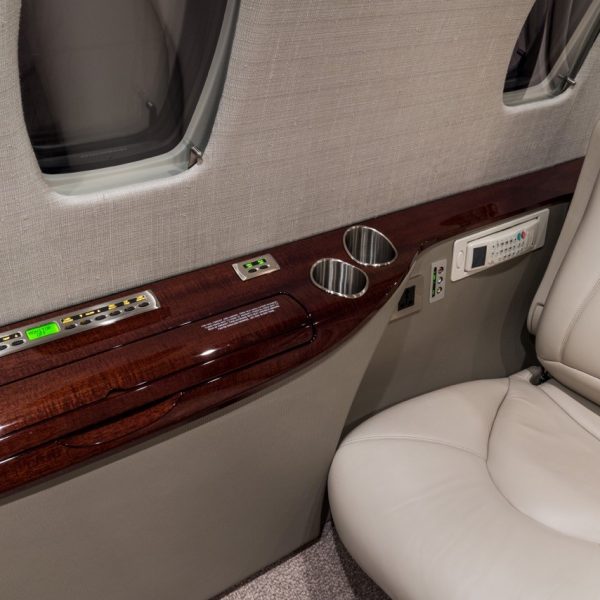

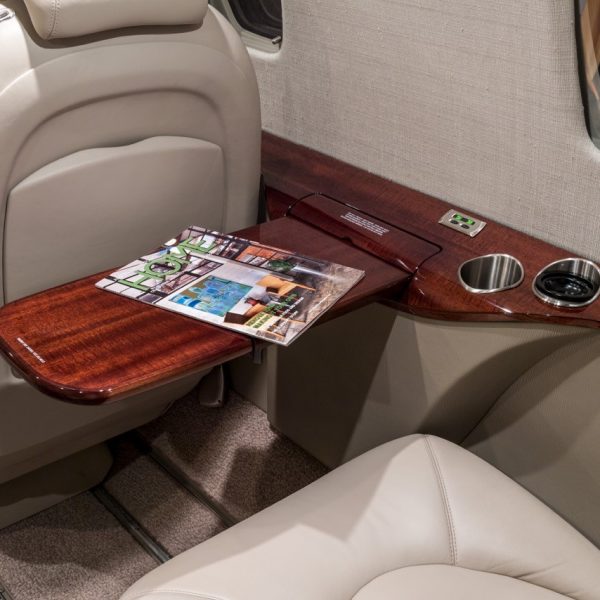

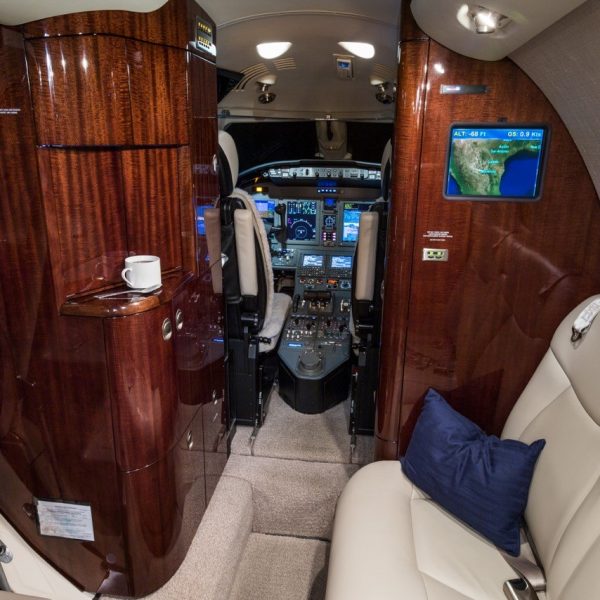

Passengers: 9 Configuration: Executive; Seating: Forward RS 2-place side-facing divan, mid-cabin double club, dual aft forward-facing seats, sheepskin crew seats, belted lav seat; Refreshment Equip: LS galley; Entertainment Equip: Forward 10.4-inch Rosen LCD screen, Rosen flight information system Business Equipment: AirCell Gogo Biz w/broadband internet; Accessories: Six 110V AC universal outlets Storage: 9-inch RS closet

Cockpit: Collins datalink, Collins DBU-5000 database unit, Collins RIU-4110 radio interface unit, dual Collins ADC-3000 air data computers, dual IAPS PWR-3000 IAPS power supply, dual Collins FDU-3000 flux detector, dual Collins CCP-3310 cursor control panel, Artex C406-N ELT, dual Collins AFD-3320 multi-function display, Collins DCU-5010 data concentrator unit, Collins MDC-3110 maintenance diagnostic computer, dual flight guidance computer, Meggitt GH-3000 secondary flight display, XM weather provisions; BP2380 engine oil.

Airframe Maint Program: ProParts; Airframe Tracking Program: Cessna Camp;

Certification(s): RVSM; MTOW: 20,200; RAMP: 20,400; ZFW: 15,100; FUEL: 6,790; EMPTY: 12,480
