15,331 Hours since new
8,616 Landings
Left TFE-731-2-2B
TSN:14,736.7
CSN:12,690
Serial:P-89490
TSO:2,942.1
CSO:1,909
Right TFE-731-2-2B
SN:13,475.9
CSN:7,642
Serial: P-89625
TSO:2,618.4
CSO:1,179
1986 Learjet 36A
Serial Number 57, Registration Number N525AC
Contact:
Bill McNease
817-691-1910
Bill.mcnease@jba.aero

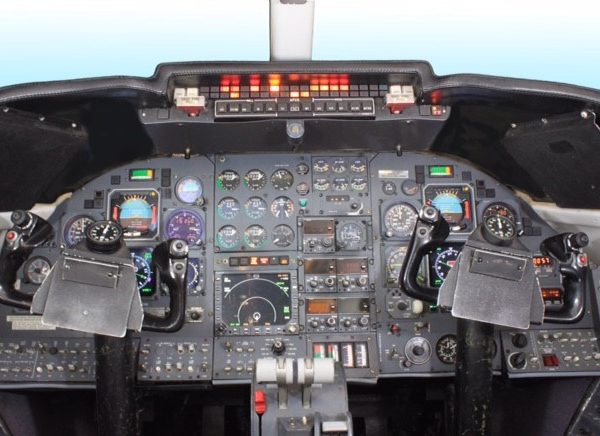

- Pilots Collins FD FIS 84/EHSI-74 integrated with J.E.T. F-530 AFCS and dual Yaw dampers
- Co-pilot Flight indicator FIS-84 with EHSI-74
- Collins Dual VHF-22A Communication Transceivers (8.33 spacing)
- Collins Dual VIR 32 Navigation Receivers
- Collins ADF-60A
- Collins Dual TDR-94D ADS-B Out Transponders
- Collins Dual DME-42
- King KHF-950 HF Com / Selcal
- Collins Radar Altimeter Alt- 55B
- Dual VG-206D Vertical Gyro
- Dual DN-104B J.E.T. Directional Gyro
- Dual 3137 RMI
- Dual Universal UNS-1B+ MMMS FMS with GPS 1000 Oceanic approved
- Honeywell Multi Function Radar Display
- TCAS 2 Bendix King 67A w/change 0
- Dual VSI/TRA TCAS Indicators
- TAWS Landmark 8100
- E.T. PS–835D and AI-804 emergency battery and attitude gyro
- Sperry Primus 300SL Colour Radar
- Weststar Honeywell RVSM Compliant
- DFDR Fairchild F1000
- CVR Fairchild A-100A
- Artex 406 MHz ELT

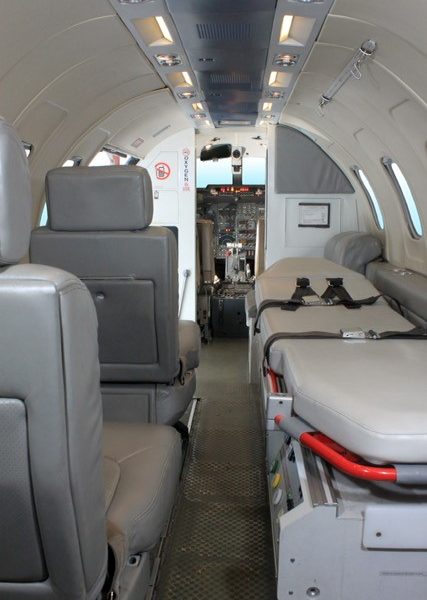

6 passenger interior with three chairs and a rear three place divan. Seats are grey leather.
Forward potty seat. Refurbished 2016.

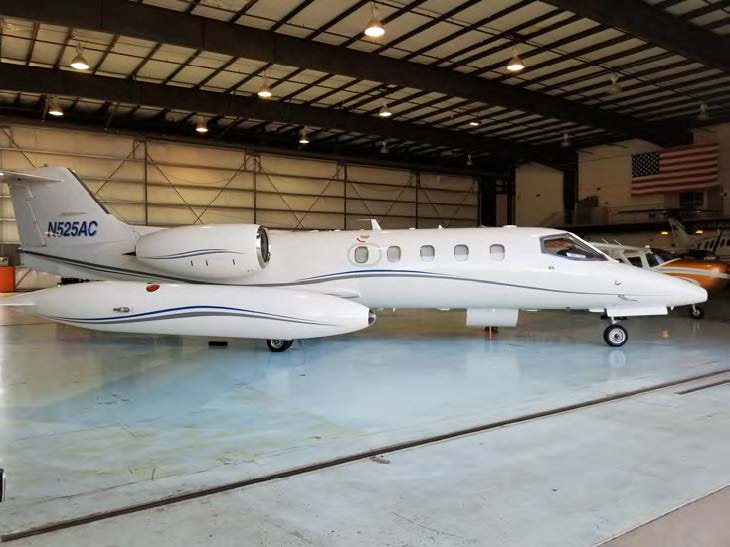

White with Blue, Grey ribbon stripes. Repainted 2016.
Phase A Completed April 2019 @15,102.6 hours
Phase B Completed January 2019 @14,812.4 hours
Phase C Completed March 2019 @15,066.2 hours
Phase D Completed April 2016 @13,879.7 hours
12 Year Inspection Due Jan 2023 @10,383 landings
12,000 hour inspection Due @16,907.1 hours
Major Landing Gear Inspection Due @11,858 landings
Shear Web SB complied with 2011
